It's so slow that nothing seems to have been happening.
March 15, 2011, the day Reactor 4 had an explosion. At that time, "fire" was emphasized not "explosion", and the condition was described as "a hole in the wall, and damage to the ceiling". More accurate would have been "8-meter hole in the wall that is crumbling, and no ceiling except for steel beams."
March 16, 2011:
March 22, 2011:
March 24, 2011:
April 10, 2011:

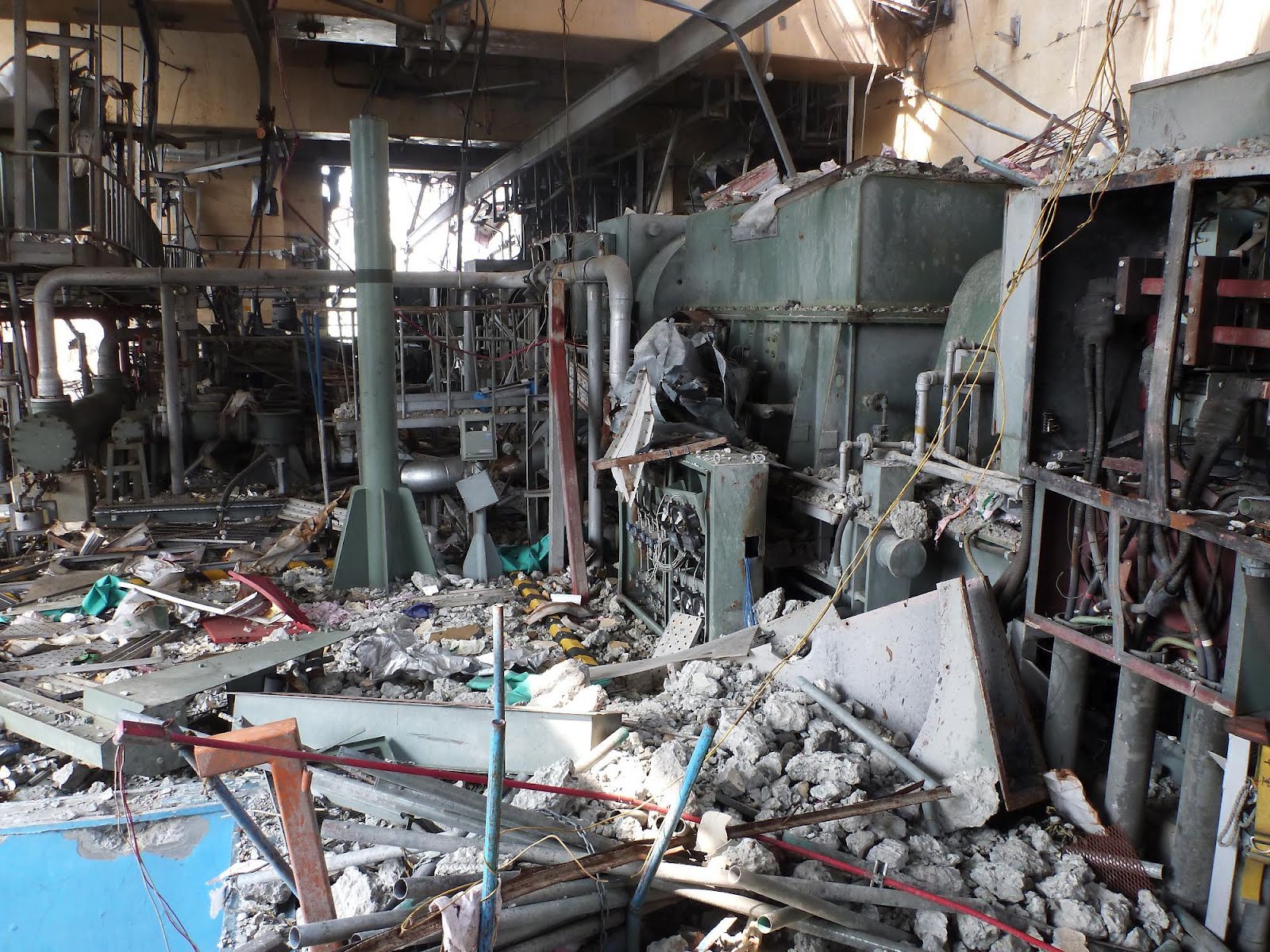

June 10, 2011:
June 29, 2011. Reactor 4 Spent Fuel Pool when it was still "warm", before the heat exchanger was installed:
June 30, 2011:
September 29, 2011:
September 22, 2011:
January 5, 2012. This photo caused some bloggers and sites to claim Reactor 4 is falling apart. For more about the demolition/cleanup work that was being done, see my post from December 2011:
February 24, 2012:
March 5, 2012:
Photos are from TEPCO's "Photos for Press" page for Reactor 4.
Long, long way to go.
